A downloadable nodelogic for Windows

NodeLogic

Input:

  • MouseButtonLeft - move nodes,connect and select
  • MouseButtonRight - change zoom
  • MouseButtonMiddle - move camera
  • D-duplicate node
  • Delete-delete node

Description:

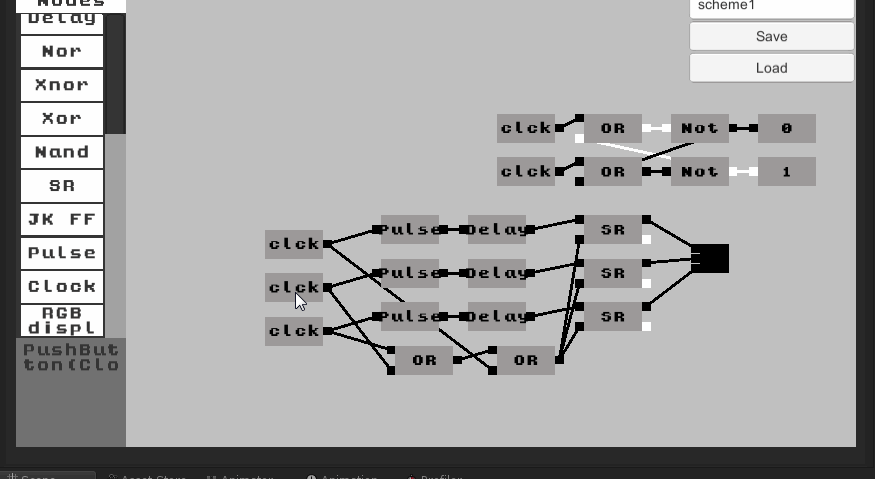

Simple logic simulator made on unity.

Have all basic and more other logic gates:

  1. And
  2. Or
  3. Not
  4. Nand
  5. Nor
  6. Xor
  7. Xnor
  8. JK trigger
  9. SR trigger
  10. Push button
  11. Toggle button
  12. Delay
  13. Pulse
  14. Clock
  15. Bit display
  16. RGB display with 9 colors
  17. Label

GitHub

Video demonstation:



More information
StatusIn development
PlatformsWindows
Rating
Rated 5.0 out of 5 stars
(1 total ratings)
AuthorMaximovInk
GenrePuzzle, Simulation
Made withUnity
Tags2D, circuit, logic, logic-gates, node, nodes, Open Source, Unity
Average sessionA few seconds
LanguagesEnglish
InputsKeyboard, Mouse
LinksSource code

Download

Download
build_1_0_v.rar 14 MB
